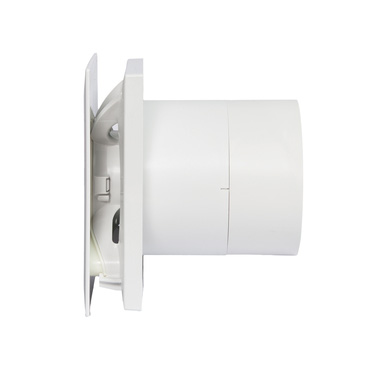

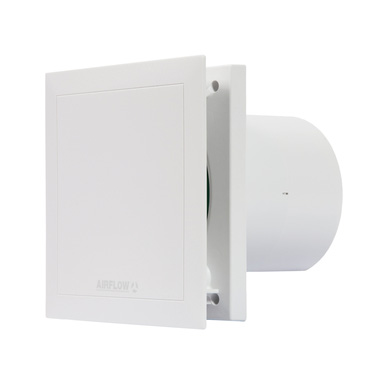

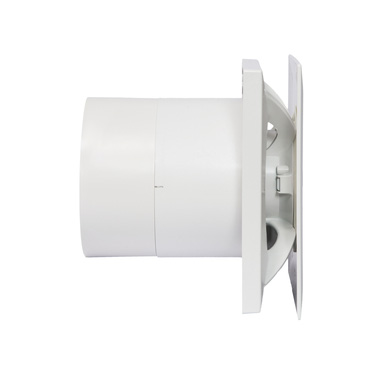

Airflow QuietAir Extractor Fan 100mm Humidistat/Timer
by Airflow Product Code: 29794 29794
Related products
Product Details
• Extremely quiet from 25 dB(A)
• Delay start for two minutes avoids unnecessary use (especially at night), and saves energy
• Power consumption from only 5 watts
• Longlife ball-bearing motor with 40,000 hours life
• Two speed options, 75 m3/hr and 90 m3/hr
• Adjustable humidity and timer
• High efficiency impeller delivers up to 60m3/hr through 12m of rigid ducting, including 90 degree bends
• Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations

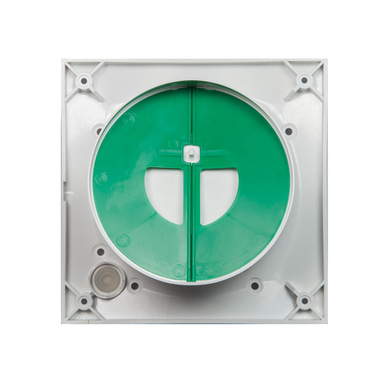

• Integral flow straightener and back draught flap
• Low specific fan power for SAP assessments

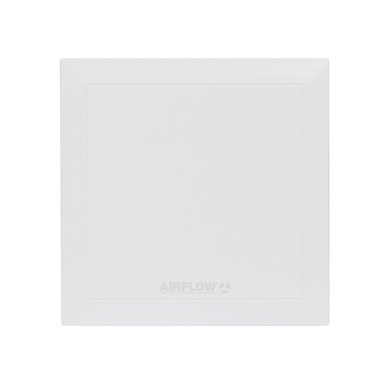

• Clip-on cover for ease of cleaning
• Complies with latest Building Regulations Approved Document F
• Airflow 75/90 m3/hr, 20.8/25 l/sec
• Airflow 31Pa @ 60 m3/hr, 16.6 l/sec
• Axial high efficiency impeller
• Wall/ceiling mounting
• Sound pressure 25/30 dB(A) @ 3m
• Adjustable timer (minutes) 6, 10, 15, 21
• Adjustable Humidity 65% - 90% RH
• Power 5/9 watts
• SFP 0.24 w/l/s
• Voltage - 230/1/50-60Hz
• Rating IP45
• Max. ambient temperature 40 degree
Technical Specification
Certification | Building Reg Part F |
Material | ABS |
Type | Fans |
Power source | |
Mains or Battery | Mains |
Brand | Airflow |
Manufacturer ID | 9041261 |
Range Name | QuietAir |
Colour | White |
Depth (mm) | 131mm |
Width (mm) | 147mm |
IP Rating | IP45 |
Voltage | 230V |
Wattage | 9W |
Sound volume | 25dB |
Max. Flow Rate | 25 L/s |
Finish | Gloss |
Fitted Depth | 35 |
Extractor Fan Shape | Square |
