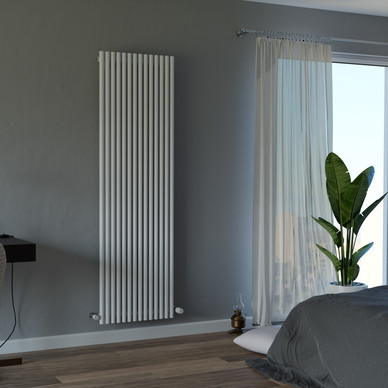

Ximax Cornwall Vertical Designer Radiator 1800 x 550mm 4553Btu White
by Ximax Product Code: 38370 38370
Related products
Product Details
This radiator is compatible with a hot water central heating system and is easy to install. It's highly energy efficient because it uses very little water, so it heats up fast. It has a heat output of around 20°C and so will keep an area toasty warm. Its tubular design offers maximum surface area so warm air is spread out quickly and easily.
The unit is made from pre-treated steel which gives the radiator a high-quality finish. To make life easier this product is supplied with all the accessories you need to attach it to a wall so you can take it out of the box and mount it straight away.

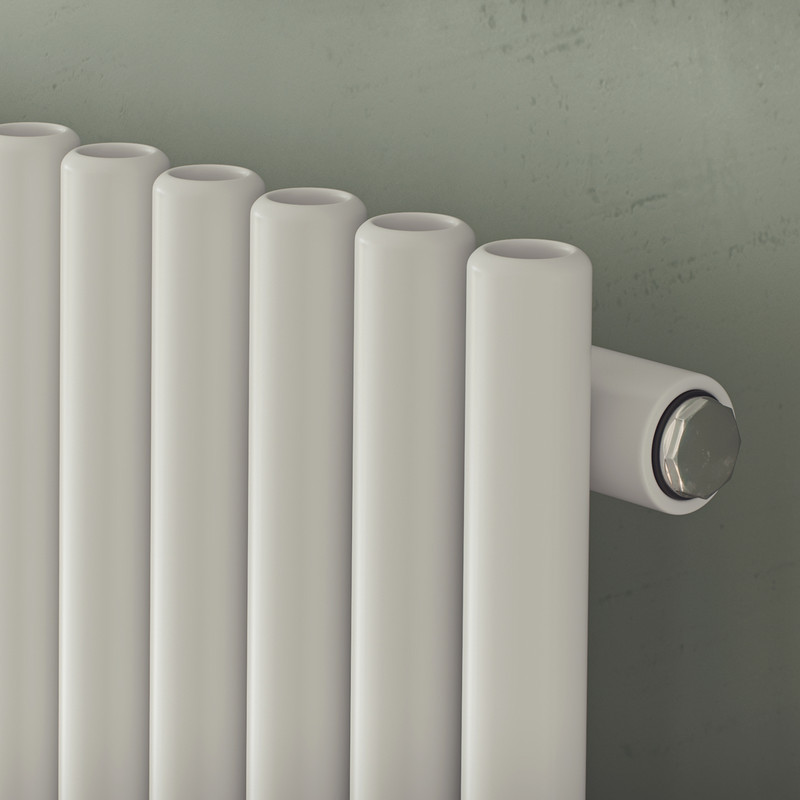

• Round 30mm tube designer radiator with an efficient tube-in-tube system
• High performance and maximum output
• Steel construction with high quality pre-treatment and powder-coated finish
• Easy to install with wall fixings, plug and vent included
• Maximum working temperature of 120°C
• Heat output calculated at Delta T50
• Pressure tested to 13 bar, with a maximum working pressure of 10 bar
• Projection from wall: 86mm
• Wall to centre: 41mm
• Dimensions are height x width
• Connection size: 1/2"
• Manufactured and tested to EN-442
• 10-year manufacturer's guarantee (T&Cs apply)
Technical Specification
Certification | Manufactured and tested to EN-442 |
Material | Steel |
Product Manual | click here |
Max. Hot Water Temp | 120°C |
Brand | Ximax |
Manufacturer ID | TCO1800550W |
Warranty (years) | 10 years |
Range Name | Cornwall |
Colour | White |
Depth (mm) | 60mm |
Width (mm) | 470mm |
Pack contents | Radiator, fixings, blank and air plug |
Inlet Connection | 1/2" |
Finish | Gloss |
Min. pressure (bar) | 0.5 bar |
Pipe Centres | 550mm |
BTU | 4553 |
Max. pressure (bar) | 10 |
Coating | Powder Coated |
Radiator Style | Tube |
BTU range | 4001-6000 |
Fitted Depth | 86mm |
Radiator Profile | Single Panel |
Number of Sections | 14 |
Delta T | Delta T50°C |
Radiator Orientation | Vertical |
Weight (Kg) | 34.56KG |
