Ximax Oxford Slim Duo Vertical Designer Radiator 1800 x 445mm 4164Btu Anthracite
by Ximax Product Code: 28792 28792
Related products
Product Details

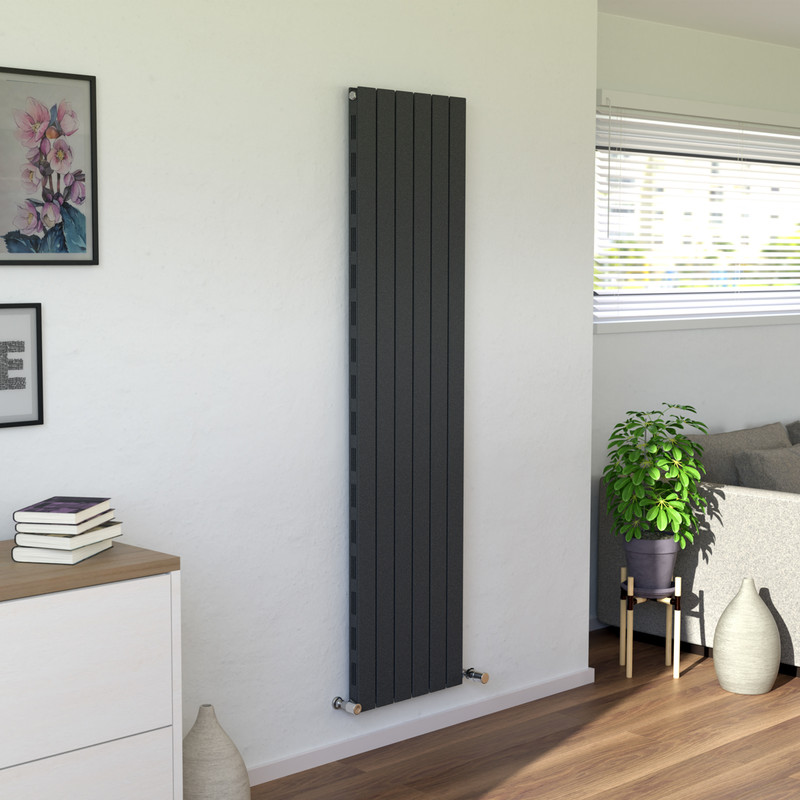

The radiator is mounted vertically and is suitable for a wide range of installations, such as a narrow dividing wall between rooms or inside a walk-in wardrobe. The unit comes with a 10-year manufacturer's guarantee and it's made of durable steel too, so you can count on it to last a long time. Plus, the steel is pre-treated to ensure it's resistant to rust and corrosion.
It has a Delta T 50°C heat output, which means it will generate a comfortable +20°C room temperature. The unit's sleek design with anthracite powder-coating offers a sophisticated touch for the modern home. It's supplied with wall fixings, a plug and a vent to ensure you can mount it easily. Engineers have rigorously tested this radiator for safety and quality, including pressure testing it to 5.2 bar and manufacturing it under EN-442 European standards.

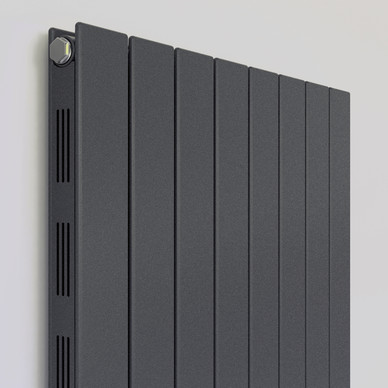

• Stylish designer radiator with slim modern panel design and side covers
• Steel construction with high quality pre-treatment and powder-coated finish
• Wall fixings, plug and vent included
• Maximum working temperature of 120°C
• Heat output calculated at Delta T50°C
• Pressure tested to 5.2 bar, with a maximum working pressure of 4 bar
• Connection size: 1/2"
• Projection from wall: 77mm
• Wall to centre: 50mm
• Manufactured and tested to EN-442
• Dimensions are height x width
• 10-year manufacturer's guarantee (T&Cs apply)
Technical Specification
Certification | Manufactured and tested to EN-442 |
Material | Steel |
Product Manual | click here |
Max. Hot Water Temp | 120°C |
Brand | Ximax |
Manufacturer ID | STPD18045A |
Warranty (years) | 10 years |
Range Name | Oxford Slim |
Colour | Anthracite |
Depth (mm) | 45mm |
Width (mm) | 445mm |
Pack contents | Radiator, fixings, blank and air plug |
Inlet Connection | 1/2" |
Finish | Matt |
Min. pressure (bar) | 0.5 bar |
Pipe Centres | 445mm |
BTU | 4164 |
Max. pressure (bar) | 4 |
Coating | Powder Coated |
Radiator Style | Flat |
BTU range | 4001-6000 |
Fitted Depth | 77mm |
Radiator Profile | Double Panel |
Number of Sections | 6 |
Delta T | Delta T50°C |
Radiator Orientation | Vertical |
Weight (Kg) | 34.45KG |
